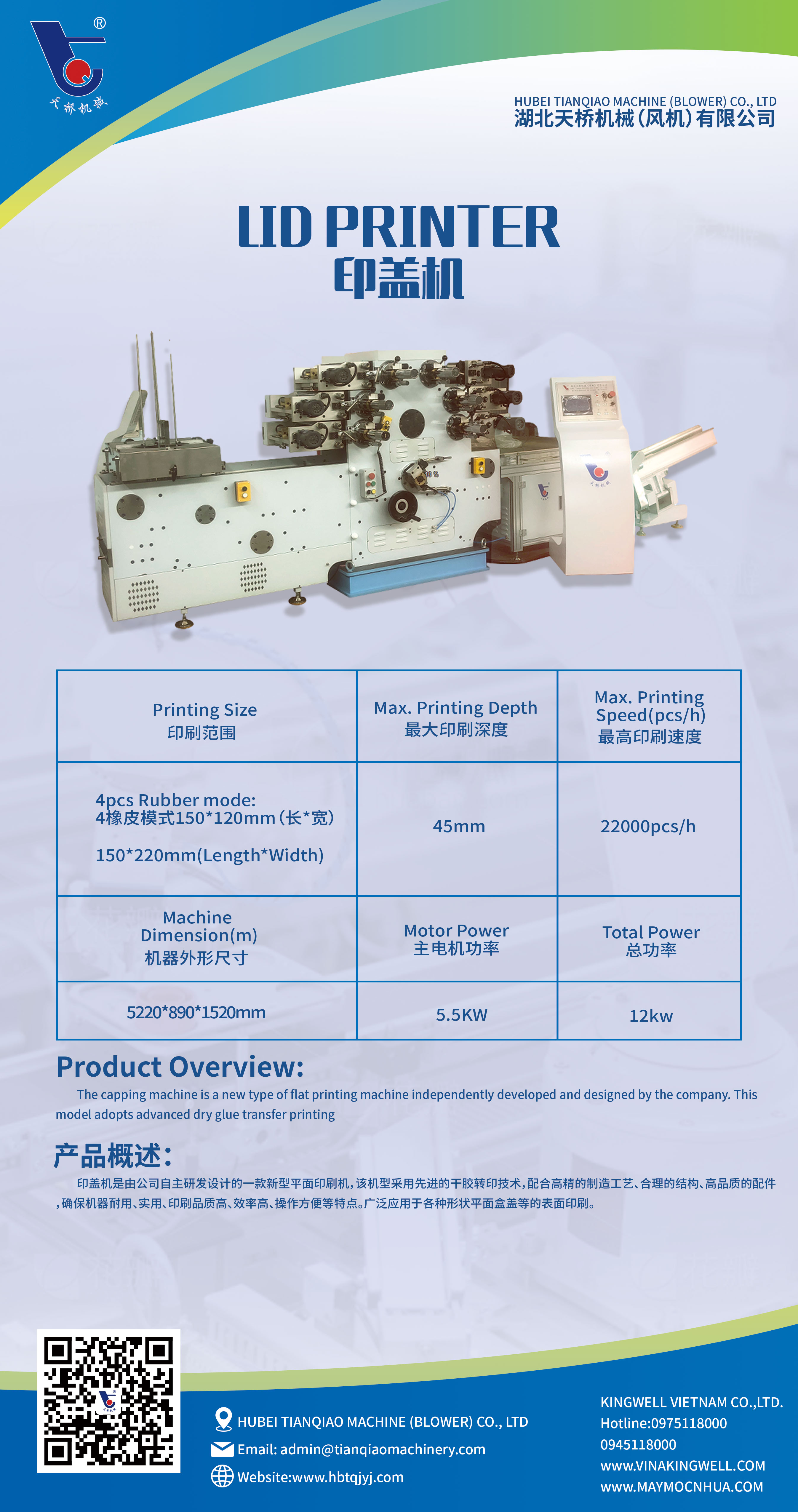

平面蓋型彩印機

產品簡介：

JYQ - PM型多色平面膠印機是由公司自主研發設計的一款新型平面印刷機，該機型采用先進的干膠轉印技術，配合高精的制造工藝、合理的結構、高品質的配件，確保機器耐用、實用、印刷品質高、效率高、操作方便等特點。廣...

在線咨詢全國熱線
13872878482

產品描述


JYQ-PM multi-color flat offset printing machine is a new type of flat printing machine independently developed and designed by the company. This machine adopts advanced dry glue transfer technology, combined with high-precision manufacturing technology, reasonable structure, and high-quality accessories, ensuring the machine's durability, practicality, high printing quality, high efficiency, and easy operation. It is widely used in color printing of surface patterns of various shapes, flat covers and other planes.

產品特點：

Features:

本機配備自動上料螺旋分杯器，分杯快捷、簡便、快速，可適應各種形狀的平面盒蓋；

1. The machine is equipped with automatic feeding screw cup, cup fast, simple, fast, can adapt to various shapes of flat box cover;

本機配備印前火焰表面處理，可使印刷圖案更加清晰、附著力更強，大大提高了印刷產品的印刷質量；

2. The machine is equipped with pre-press flame surface treatment, can make printing patterns more clear, stronger adhesion, greatly improve the printing quality of printing products;

3. 本機采用PLC輸入自動控制系統，可設置自動控制機器運行速度，保護機器不受損壞；

3. This machine adopts PLC input automatic control system, can set up automatic control machine running speed, protect the machine from damage;

4. 配備自動堆疊收料系統，可調節尺寸，各種大小的蓋子隨心調節，方便快捷；

4. Equipped with automatic stacking material collection system, adjustable size, various sizes of the lid adjustment, convenient and quick;

5. 全自動UV固化系統，干燥快，附著力強；

5. Fully automatic UV curing system, fast drying, strong adhesion;

6. 冷卻系統采用抽風式設計，冷卻快，風道采用多孔式傳動皮帶，使產品在經過UV固化系統時吸附牢固；

6. The cooling system is designed by air extraction, which is quick in cooling and adopts porous transmission belt in the air passage, so that the product can absorb firmly when it goes through UV curing system

7. 本機采用底座固定式設計結構，底盤更穩定、轉動更加平穩，在機械使用壽命以及印刷質量上有很大提高；

7.The machine adopts fixed base design structure, chassis more stable, more stable rotation, in the mechanical life and printing quality has been greatly improved;

8. 本機可印刷最大幅面可達到220*220mm,最大印刷深度可至45mm,最大印刷速度可達10000個/小時；

8. The machine can print up to 220 × 220mm, up to 45mm printing depth, up to 10000/hour printing speed;

9.本機收料部采用自動計數裝置，計數準確。

9. This machine adopts automatic counting device in the receiving part, which can count accurately.
